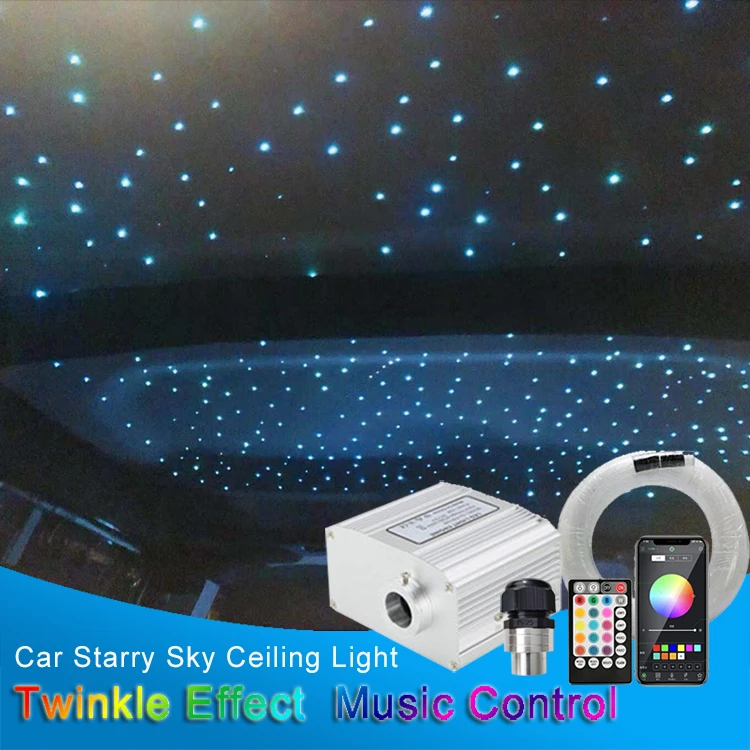

10W Twinkle Effect Car Starry Sky Light Car Roof Star Music Control Fiber Optic Lighting Kits
Work voltage: DC 12V
LED chip: RGBW LED
RF Remote control & APP Bluetooth control
Fiber head inner diameter: about 20 mm
Engine size: L105mm*W85mm*H60mm
Working temperature:-20 centigrade-50 centigrade
Weight: 0.84 kg
LED Lifetime: 50,000 hours
Engine warranty :2 years
1. Auto-sensing MUSIC CONTROL function
It can automatically sense the rhythm of the music in the car to flash and change colors with frequency.
2. Powerful 28-key music sound control remote
Pure white light mixed with white light function, 16 static colors, 6 dynamic effects, jump,fade,four-speed twinkle ,music switch button, music control sensitivity adjustment, dynamic speed adjustment, static brightness adjustment.APP has the same powerful functions.
3. RGBW four LED lamp beads
High brightness, low energy consumption, environmental protection, long life and stable effect. Especially with pure white light and RGB mixed white light, the colors are more abundant.
4. Built-in irregular round hole turntable，unique Twinkle Effect
Built-in irregular round hole turntable The built-in irregularly distributed circular holes of different sizes.When the turntable rotates, the light received by the optical fiber is uneven.Part of the fiber is bright and the other is dark, so the fiber can show the effect of flickering and dimming, which is closer to the effect of the starry sky at night.
Mixed Fiber Optic detail：
Mixed 295pcs*2m：270pcs*0.75mm*2m+20pcs*1mm*2m+5 pcs*1.5mm*2m
Mixed 295pcs*3m：270pcs*0.75mm*3m+20pcs*1mm*3m+5 pcs*1.5mm*3m
Mixed 380pcs*3m：320pcs*0.75mm*3m+50pcs*1mm*3m+10 pcs*1.5mm*3m
Mixed 450pcs*3m：420pcs*0.75mm*3m+20pcs*1mm*3m+10 pcs*1.5mm*3m
Smartphone APP Control:
1. Please download the “My smart LED” APP （the QR code on the product manual）
2. Connect a Bluetooth-compatile device :
Open the Bluetooth of the mobile phone—Power on the lamp—Then open the APP; at this time, the app will automatically connect to the Bluetooth light fixture.
**Don’t manually connect Bluetooth to this device in your phone settings.
1x 10w RGBW light engine
1x RF controller ( NOT included Battery of Remote : CR2025 3V button battery )
1 x Car cigarette plug
1 x Connectors
1 x User Manual
3 x Drill bits (diameter 0.8mm 1mm 1.5mm)
BUY IT NOW AND GIVE YOU 3 DRILL BITS.
1 x Optical Fiber (According to the product parameters you choose)
This item have EU/US/UK/AU power plug for choose, if you need other plug contact us ,thank you!The LED light source is a DC 12V voltage, and it is prohibited to directly use the 110v/220V/230v power supply to test the machine .
Some countries/regions charge tariffs. Tax thresholds are different in each country, so you need to check with local customs for details. Import taxes, value-added tax and any other fees are not included in the price of the goods.
1.Remove the roof
Remove the roof of the car first(Overturn Copilot or seat,remove it from the back door)
2. Draw the hole
Use a o.5mm-1.5mm twist drill bit to insert the optical fiber in the ceiling and fix it with hot melt adhesive (tips: you can use the pen to punch the point first, because the drilled hole is very small ,the ceiling and the optical fiber are white.lf you don’t draw dots,you will miss someplaces without inserting optical fibers.)lf you want to make some shapes, such as stars, moons, galaxies, etc., you can paste apattern on the back of the ceiling and then follow the outline of the pattern to insert optical fibers. Simple patterns can bedirectly Just draw holes in the ceiling.
3. Insert fiber
1.Select the pattern
2. Print it out
3.Punch holes according to the pattern
4.Insert the fiber and fix it
4. Fixed fiber
Use hot melt glue or glass glue to fix
5. Straighten the fiber
Straighten the optical fiber lines(ens of small bundles), and the concentrated parts can be rolled with black electric tape so tha tthey will not be scattered.
6. Stick sponge or leather
Stick sponge or leather to isolate the iron sheet to extend the life of the optical fiber.
7. Cut the fiber
Cut off the excess fibers in thecar, usually cut it flat to theroof, or leave it to a certainlength according to your needs.
8. Electrical connection
The power supply can be connected to the low beam, driving light, ACC, cigarette lighter, and the required power supply voltage is 12V. The LED light source can be hidden in the C-pillar or the trunk. The fiber color and switch can be completed by the remote control and mobile application . Finally, install the roof on the car.
